Laowa Ranger FF Cine Zoom Kit
Two compact full frame zooms at a constant T2.9, the 75-180mm and its matching 28-75mm, built to run a whole shoot without a prime case.
The team behind productions for

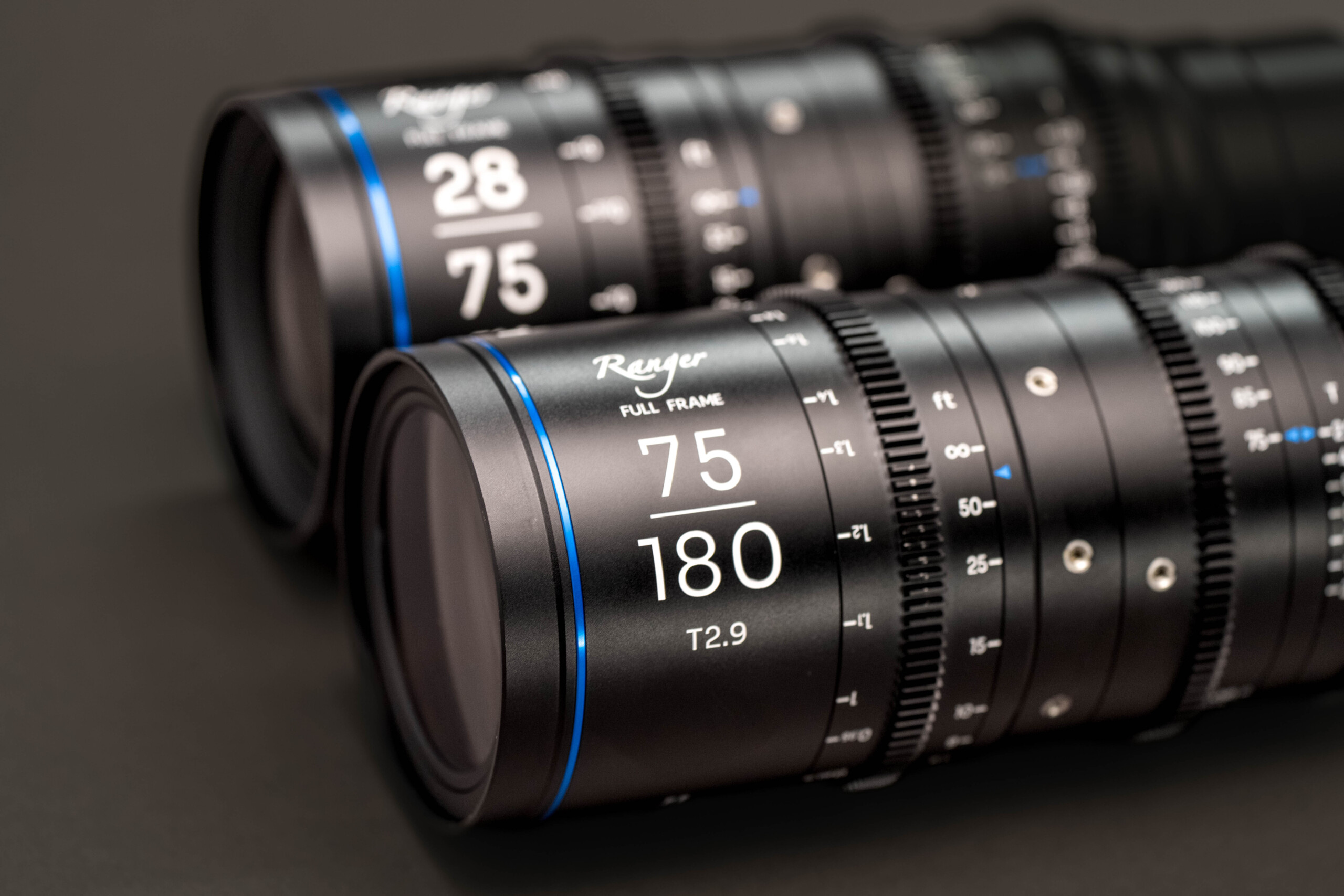

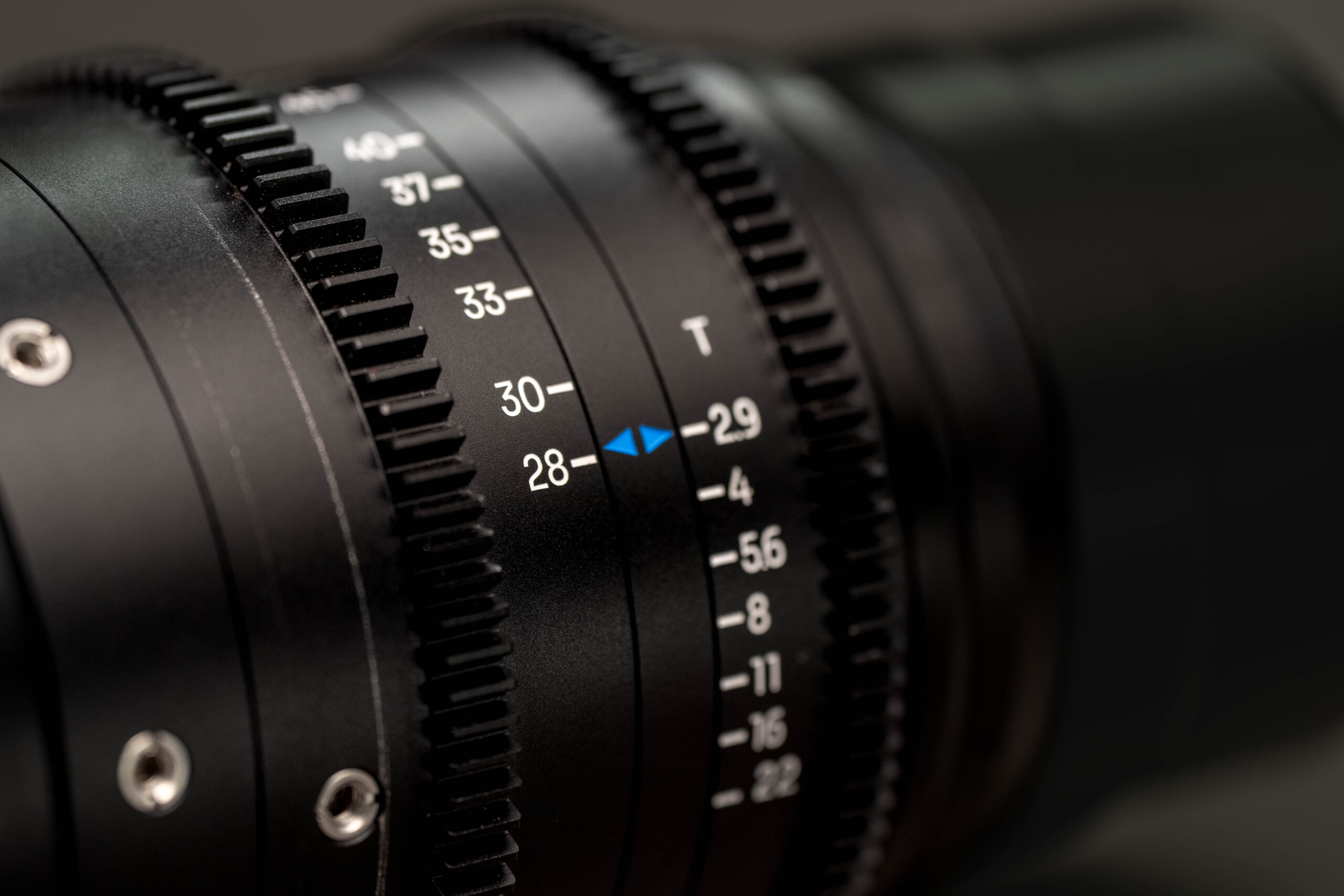

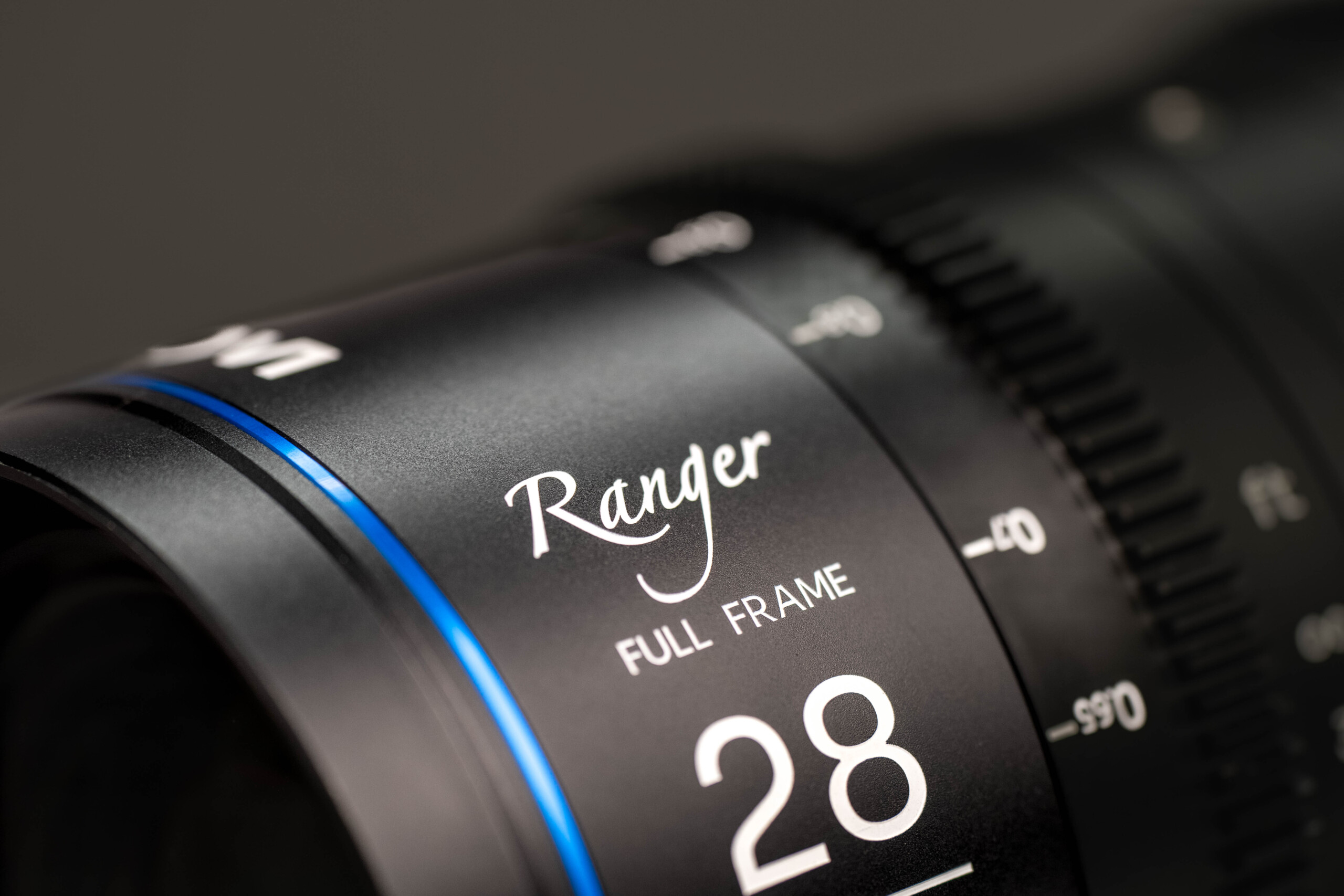

Up Close With the Kit
One filter size. Zero fuss.
Both zooms share an 80mm front and 77mm filter thread, so your matte box and NDs never leave the rig.
Put it on your call sheet.
Reserve the Ranger kit with your Tampa Bay pickup date and we will have it prepped, checked, and ready.
Book the Laowa Ranger FF Cine Zoom KitStraight From the Spec Sheet
- Aperture
- Constant T2.9, stops down to T22, 11 iris blades
- Sensor coverage
- Full frame, 43.2mm image circle, also covers Super 35

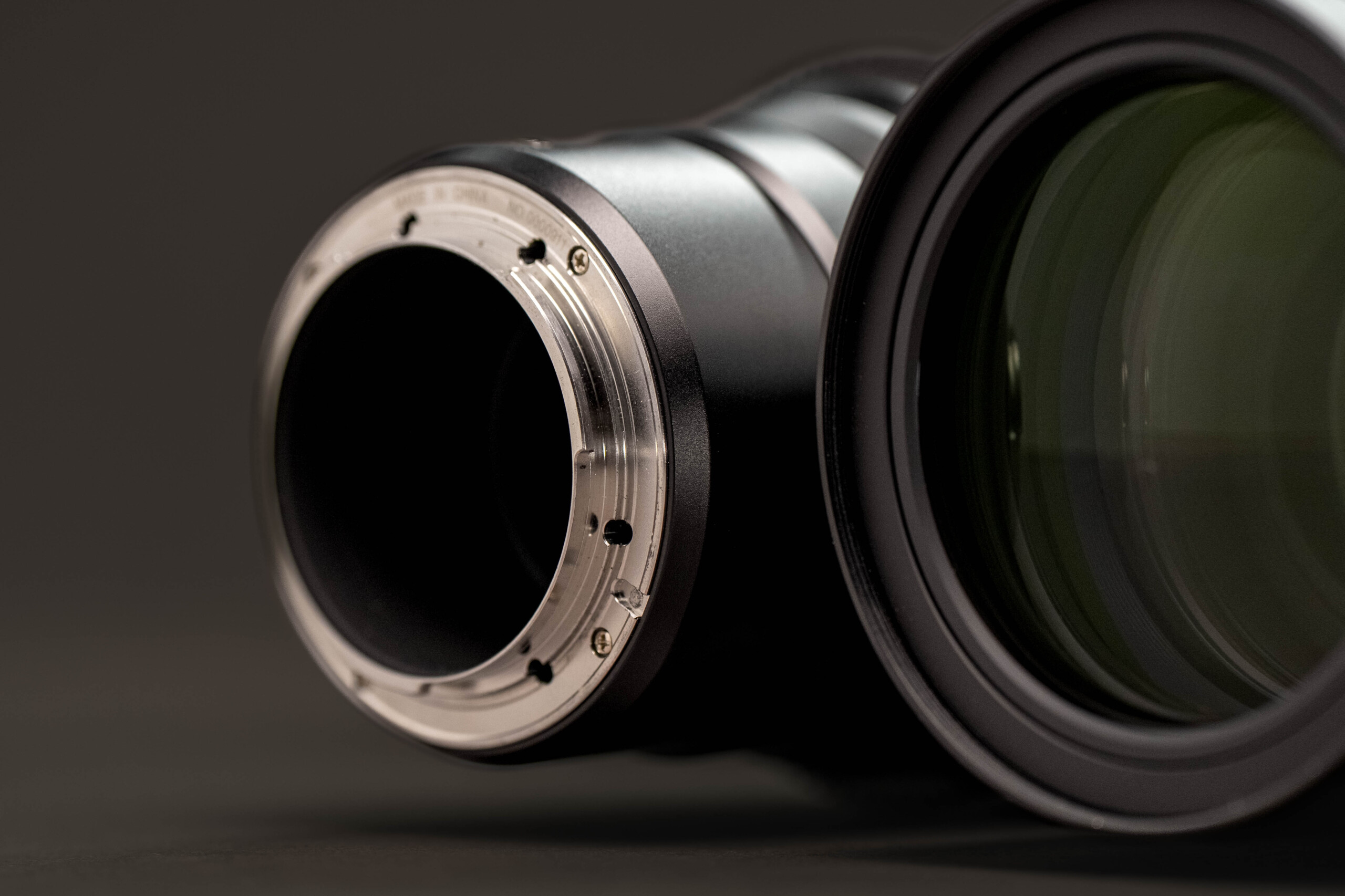

- Mount
- Arri PL native, interchangeable Canon EF bayonet included in box; optional Canon RF, Sony E, Nikon Z, L
- Focal lengths
- This kit: 28-75mm (2.7x zoom) and 75-180mm (2.4x zoom); series also includes a 16-30mm
- Front diameter and filter
- 80mm front diameter, 77mm filter thread
- Focus and gears
- 270 degree focus throw, 100 degree zoom, 42 degree aperture; 0.8 MOD gears, dual imperial and metric scales
- Close focus
- 28-75mm: 49cm (1ft 7in) at 0.23x; 75-180mm: 89cm (2ft 11in) at 0.217x
- Weight
- Standard: 28-75mm 1416g (3.12 lb), 75-180mm 1339g (2.95 lb); Lite: 1264g / 1226g
- Design features
- Parfocal through the zoom, contained focus breathing, built-in back focus adjustment on both, unified gear positions for fast swaps
Factory numbers from Laowa.
Shot on the Laowa Ranger
Real frames from our own productions, captured on this exact glass.
Priced by the Day
- Prepped and tested in Clearwater
- Multi-day and weekly rates on request
Build the Package
- Renegade XL battery block, untethered power$250/Day
- Domes, grids and modifiers from the shelffrom $10/Day
- Full lighting menu with day rates
Kit Rental FAQ
What mounts do the Rangers ship in?
Both lenses are Arri PL native with an interchangeable Canon EF bayonet included in the box. Laowa offers RF, E, Z, and L mounts as options.
Do the Rangers cover full frame?
Yes. Both zooms cover full frame with a 43.2mm image circle and cover Super 35 as well, so they work across FF and S35 bodies.
What ships in the kit?
Two lenses: the Laowa Ranger 75-180mm T2.9 FF and its matching 28-75mm T2.9 FF, with unified 0.8 MOD gear positions for fast swaps.
Lock in the pair.
Reserve the Laowa Ranger kit at $150 per day and pick it up prepped from our Tampa studio.
